Portable lathes for sealing faces, flanges and bores (TD)

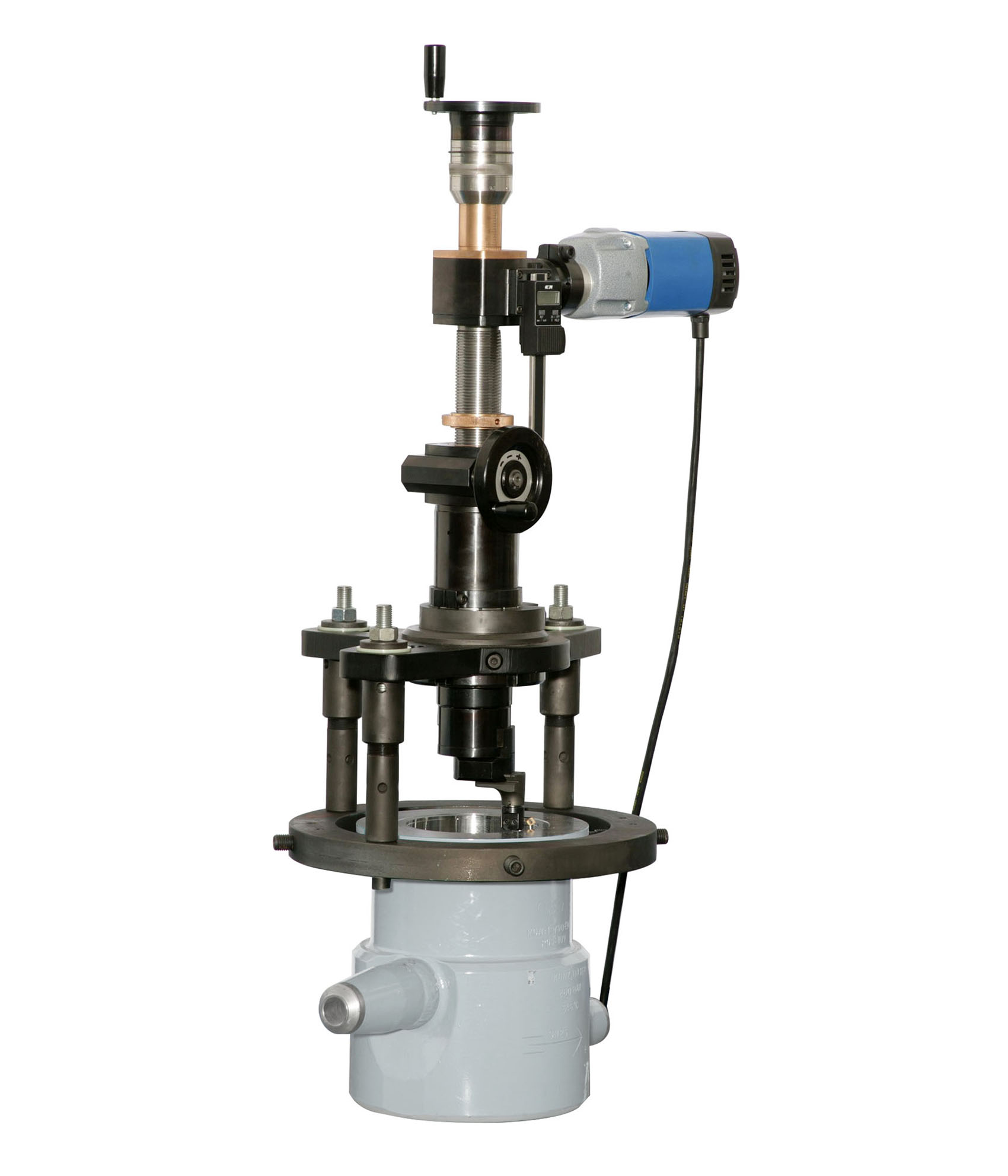

EFCO TD-2.02 NEW

The EFCO TDs are portable lathes for precision machining of bores and sealing surfaces in valves, cylinders, pumps, turbine housings, etc. These machines are suitable for use on site and in the workshop, in power stations, for valve servicing, for chemical and petrochemical facilities, in steel construction, in shipyards and in oilfields.

The new EFCO TD

The well-tried TD has been radically revised and given a multitude of excellent properties. The new TD is therefore the most powerful, safest lathe of its kind on the market.

The outstanding properties of the new TD include:

  • Stable bore machining
  • Continuously variable, automatic axial and radial feeds
  • Handy control panel, fine adjustments at the gearbox casing (no intervention at the rotary head required)
  • Use of square standard turning tool holder
  • Maximum working depth can be extended
Technical Data
Model TD-03* TD-1.01 TD-2.02*
Machining-Ø 0–150 mm (0–5.9") 0–400 mm (0–15.7") 0–800 mm (0–31.5")
Working depth 250 mm (9.8") 450 mm (17.7") 600 mm (23.6")
Radial Stroke 20 mm (0.79") 40 mm (1.57") 60 mm (2.36")
Axial stroke 100 mm (3.94") 200 mm (7.87") 250 mm (9.8")
Drive: electric 230/120 V, 50/60 Hz or pneumatic (6–7 bar)* (Optional high-speed grinding device available for TD-1.02 and TD-2.02)
Portable facing machines for flanges (TDF)
Flange Facer TDF-1 mounted on valve

When seals are replaced, it is frequently unavoidable that the sealing faces themselves have to be remachined due to damage from heat or aggressive media. Our portable flange facing machines with external clamping are suitable for this type of work in pipelines, on large valves, pumps, chemical plant, turbine housings, heat exchangers etc. Simple installation, low weight and flat design of the machines make use of these machines possible on site in almost any position. The required roughness of the sealing faces can be obtained due to variable feeds during machining. Inclined faces can be machined using additional tools.

Work range: Power supply:

DN 0 – 3500 mm (0“ – 137.8“) electric 230/110 V, 50/60 Hz or pneumatic 6-7 bar

Portable facing machines for flanges with ID-clamping (TDFI)
Flange facer with I.D. clamping TDFI mounted on flange ID mounted flange facer EFCO TDFI-3

The pressure to reduce costs in industrial maintenance increases. So does the demand for durable and efficient machines. Due to its flat design and the low weight, the portable, ID-mounted TDFI is ideal for applications in areas with limited working space.

The EFCO TDFI machine is particularly suitable for machining:
  • Flanges of any kind
  • Fitting housings
  • Container flanges
  • Heat exchangers
  • Shipbuilding fittings
  • Columns in refineries and the chemical industry
  • Smooth and spirally grooved flange sealing surfaces

The TDFI-3, 4 and 5 make use of a common driveunit. According to requirements, the neededsize of machine can be obtained by modification of the turning- and clamping arms.

Portable CNC-Controlled Lathe (TD NC)
EFCO NC Series

The lathes in the NC series open up an almost infinite number of surface machining options. We achieve a completely new quality standard in flange and valve seat machining. Because of the pre-programmed processing cycles, the TD-2.02 NC special machine is ready for immediate use, and can be operated after just a small amount of instruction and no previous CNC programming knowledge. Machining options with the EFCO NC lathes. Of course, you can also supplement the program package with your own CNC programs.

TD-2.02 NC CNC-controlled lathe TD-2.02 NC incl. Siemens mobile panel mounted on valve

In addition to grooving, hole machining is the other speciality of the TD-2.02 NC. The immersion depth of the machine can be increased beyond 600 mm using optionally available accessories.

The machines of the NC series are suitable for:
  • Facing,
  • Taper turning,
  • Radius turning,
  • Hole turning,
  • Grooving (axial).
Portable CNC-Controlled Flange Facer (TDF NC)
NC Series

The lathes in the NC series open up an almost infinite number of surface machining options. We achieve a completely new quality standard in flange and valve seat machining. Because of the pre-programmed processing cycles, the TDF NC special machine is ready for immediate use, and can be operated after just a small amount of instruction and no previous CNC programming knowledge. Machining options with the EFCO NC lathes. Of course, you can also supplement the program package with your own CNC programs.

TDF-2 NC CNC-controlled flange facer TDF-2 NC mounted on flange

Like all lathes in the well-tried TD and TDF series, the TDF-2 NC is also designed for chip-removing facing and internal machining of rotationally symmetrical components.The special strength of the TDF-2 NC is its robust design, which makes it particularly suitable for cutting and machining grooves. The TDF-2 NC is fixed to the fl ange using an external clamping system, and the basic version has a large facing head, a main drive, a clamping device and the Zaxis for vertical movements.

The machines of the NC series are suitable for:
  • Facing,
  • Taper turning,
  • Radius turning,
  • Hole turning,
  • Grooving (axial).
CNC-controlled vertical lathes (PDM)
Stationary vertical lathe PDM-600

PDM machines are designed for the axial machining and facing of fitting housings (gate valves, valves, check valves), pumps and similar rotationally symmetrical components. They have infinitely variable speed control and axial and radial feeds (Z and X axis) with infinitely variable control that make it possible to move both axes simultaneously at different speeds.

They are equipped with CNC programs that are specially tailored to turning requirements. During program development, special attention was paid to making operation as simple as possible. Operation takes place using a portable electronic control unit.

Work range: Working height: Power supply:

Ø1000 mm (Ø 40“)  1470 mm (58“)  electric 380V - 480V, 50/60Hz

Stationary precision turning machine (SPM)

CNC-controlled precision turning machine SPM-801 with 2 tilt tables

Stationary precision turning machines, CNC-controlled. The optimum solution for complete machining of valves, for general overhaul and also for use in production. The machines of this range have precision inclined tables (±12°, accuracy ±10“) and have been optimised for more efficient machining of valves. A particular advantage for the machining of gate valve sealing faces is the clamping. It is possible to machine both sealing faces with only one clamping by adjusting the angle at the swivel table. The symmetry of both sealing faces is thus ensured. Due to the flexible design, SPM machines can also be used for other machining tasks.

Work range: Working height: Power supply:

Ø1000 mm (Ø 40“)  1300 mm (51,2“)  electric 400V, 50Hz

Accessories
Telescope mirror inspection set (TSM-1)
Telescope mirror inspection set TSM-1 in carrying case Mirror set with magnetic lifter and integral light source to inspect points wich are dark and difficult to access.
Inclinometer
Inclinometer in carrying case Inclinometer for sealing faces in valve housings.
