Forces and moments
The equilibrium conditions of statics state that a body at rest remains at rest if the sum of all forces and moments acting on that body is zero. Determining the forces and moments is the basis for the design and dimensioning of structures and components.
TM 110
Fundamentals of statics
Demonstration of force and moment equilibrium in a mechanical force system.
TM 110.02
Supplementary set - pulley blocks
Construction and mode of operation of three different pulley blocks.
TM 110.01
Supplementary set - inclined plane and friction
Measurement and demonstration of spring deflection, inclined plane and mechanical friction.
TM 110.03
Supplementary set - gear wheels
Construction and mode of operation of three different pulley blocks.
TM 115
Forces in a crane jib
Graphical and experimental determination of forces in a planar central force system.
TM 111
Forces in a simple bar structure
Resolution of forces in a simple bar structure.
EM 049
Equilibrium of moments on a two-arm lever
Investigation of applied forces, generated moments and equilibrium.
SE 110.53
Equilibrium in a single plane, statically determinate system
Experimental investigation of the important principle of free vectors in statics.
TM 121
Equilibrium of moments on pulleys
Clear demonstration of the equilibrium of moments.
TM 122
Equilibrium of moments on a differential pulley block
Equilibrium of forces and moments and the demonstration of the force reduction on a differential pulley block.

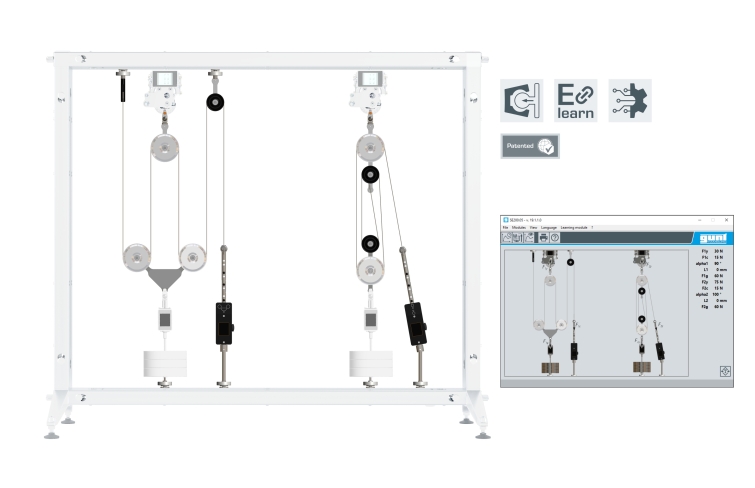

SE 200.05
MEC - Cable forces and pulley blocks
Construction and mode of operation of twodifferent pulley blocks; 2 setup variants possible for each.
