Cutaway models of hydraulic fluid energy machines

Cutaway models of driven machines

Engineering animations such as cutaway models are ideally suited to representing processes and functions. GUNT uses up-to-date original parts for its cutaway models. Movement and switching functions are maintained.

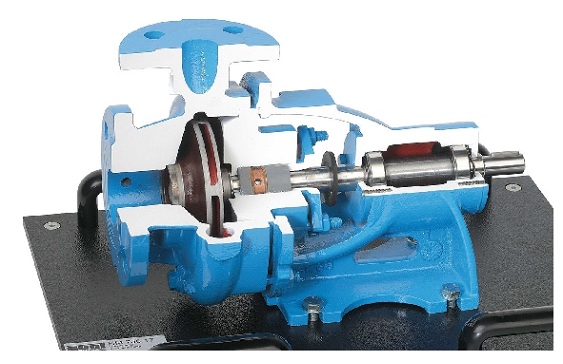

Cutaway model: centrifugal pump

HM 700.17

Cutaway model: centrifugal pump

Cutaway model of an industrial component used in pipework installations.

Cutaway model: piston pump

HM 700.20

Cutaway model: piston pump

Cutaway model of an industrial component used in pipework installations.

Cutaway model: gear pump

HM 700.22

Cutaway model: gear pumpp

Cutaway model of an industrial component used in pipework installations.
